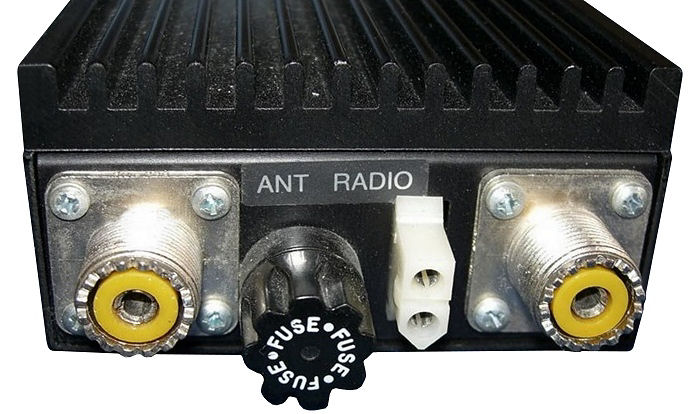

RF Concepts RFC 2-23
| Type: |
All-mode VHF Linear Amplifier |
| Frequency Range: |
143-149 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 4 A/TD>
|
| Drive power: |
10 W |
| Maximum power output: |
30 W @ 2 W input |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
89 x 51 x 165 mm (3.5 x 2 x 6.5 inches) |
| Weight: |
910 gr (2 lbs) |
| Manufactured: |
1986-198x (Discontinued) |
| Other: |
Built-in GaAs-FET preamp, 20 dB gain, 0.75 to 1.5 dB NF |
| Related Documents: |
Manual (159 kb) |
 |
